Machinery Engineering Plastics & Custom Machined Parts

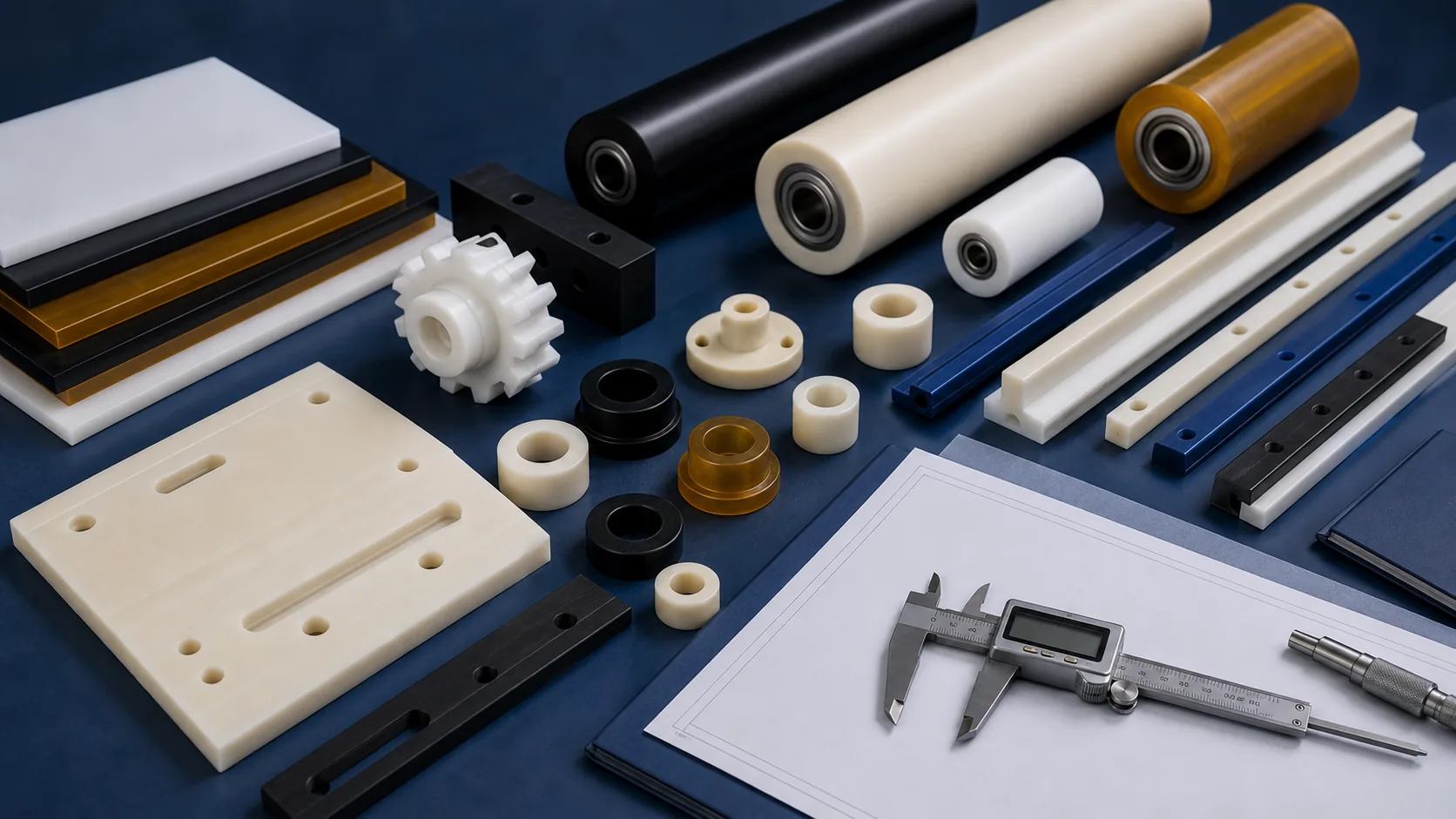

Great Plastics supplies engineering plastics and custom-machined components for bushings, guides, fixtures and other drawing-based machine parts. Match the material and geometry to the working interface, whether the priority is wear, installed clearance or stable positioning.

решения

Machinery Plastic Components

Custom gears, shaft supports, wear parts and fixtures connect your material choice to the fit and motion your machine needs.

CNC machined PEEK plastic gears, spur gears and drive motion components for industrial transmission

Gears & Motion Components

Custom spur gears, pinions and drive components for mechanical transmission. Material selection considers torque, speed, friction, noise and wear.

CNC machined PEEK sleeve and bushing parts, including split sleeves, flanged bushings and wear-resistant structural components

Bushings, Sleeves & Wear Parts

Machined bushings, split sleeves, spacers and thrust parts for shaft guidance and sliding contact. Design considers pressure, speed, lubrication, bore dimensions and running clearance.

Precision CNC machined PEEK fixture and structural parts for semiconductor and automation equipment

Guides, Fixtures & Insulating Supports

Custom wear pads, guides, mounting brackets and fixtures machined to drawing. Mounting features ensure alignment, while material selection addresses wear resistance and electrical insulation requirements.

возможность

CNC Milling, Turning & Equipment Capacity

CNC milling and turning produce the faces, bores and profiles that connect your component to the machine. Combined operations add flats, holes and slots to cylindrical parts.

Фрезерование с ЧПУ

Pockets, slots, mounting faces and bolt patterns from plate or block. Published nominal three-axis capacity is 1500 × 800 × 500 mm. Stock size, fixture clearance and cutter reach limit the usable part envelope. Deep pockets need accessible internal radii.

Токарная обработка с ЧПУ

Bores, shoulders, grooves and threaded profiles from rod or tube, with drilling for axial holes. Published nominal turning capacity is Ø431 × 990 mm. Chucking length, support and stock availability reduce usable dimensions. Long sleeves and thin walls can deflect during cutting.

Turn-Mill Features

Dual-spindle turn-mill equipment combines turned profiles with flats, cross-holes and off-axis features. Fewer transfers can help maintain their relationship to the bore. Tool access and workholding still determine the setup; not every feature is reachable in one operation.

Machine envelopes are not guaranteed finished-part sizes. Critical dimensions and tolerances are agreed by feature, material grade and setup. General tolerances do not establish a working clearance.    Возможности обработки пластмасс с ЧПУ

Feature Analysis

Complex Machine Parts, Feature by Feature

The representative part geometries show where machining decisions affect assembly and operation. Your drawing defines the critical relationships; the material determines how they respond in service.

CNC machined PEEK plastic gears, spur gears and drive motion components for industrial transmission

Gear Teeth, Roots & Shaft Fit

The tooth profile and root geometry determine contact and load transfer. The bore and drive feature connect that profile to the shaft. Tool access can constrain small roots and internal corners. Torque, temperature and the mating gear remain part of the specification.

Втулка из PEEK с продольными пазами, изготовленная методом ЧПУ, с тонкостенной конструкцией; гибкая износостойкая пластиковая втулка для прессовой посадки

Bushing Bores & Thin Walls

Concentricity between the bore and outside diameter controls shaft alignment. Split features and thin walls can move under clamping. A measured bore at room temperature does not establish running clearance under heat or load. Thermal expansion, moisture and creep can change the operating fit.

Precision CNC PEEK fixture base with datum holes, embedded positioning mounting block for automation

Pocketed Fixtures & Mounting Datums

Mounting holes, recessed faces and ribs must reference the surfaces that locate the fixture. Cutter reach limits deep pockets; internal corners retain a tool radius. Slender walls need support. Intersecting passages also need access for burr removal.

Выбор материала

Варианты материалов для ваших условий эксплуатации

Подбор материала зависит от совокупности таких факторов, как воздействие химических веществ, температура, нагрузка, движение и электрические нагрузки. Подбирайте материал именно того класса, который соответствует вашим условиям эксплуатации; одного только названия семейства полимеров недостаточно для определения его пригодности.

Материал Совместимость компонентов Выбор уровня и ограничения
PEEK Седла клапанов, опорные кольца, втулки и корпуса соединителей. Марки без наполнителя, со стекловолокном, с углеродным наполнителем и подшипниковые марки предназначены для выполнения различных задач. Наполнители влияют на жесткость, износостойкость и электрические характеристики. При использовании сильных окислителей требуется подтверждение совместимости.
PPS Детали, контактирующие с жидкостью, направляющие и опоры, сохраняющие свои размеры. Существуют различия между марками без наполнителя, со стекловолокном, с углеродным наполнителем и с модификаторами износостойкости. Требуется осторожность при работе с тонкими кромками и выемками. Химическая совместимость зависит от полного состава материала и условий эксплуатации.
PEI Электрокоробки, держатели контактов и опоры для сухой стороны. Подходит для применения там, где важны жесткость и теплоизоляция. Совместимость с жидкостями и растрескивание под напряжением могут ограничивать использование открытых деталей; укажите электрический класс.
PAI Втулки с подшипниками, упорные детали и изнашиваемые детали. Влияние влажности на размеры. Горячая вода, пар и амины требуют особого внимания. Укажите тип наполнителя и условия обработки.
PI Нагреваемые опоры, изолирующие прокладки и специальные изнашиваемые детали. Пригодность материала определяется его сортом, условиями эксплуатации и условиями контакта. Влажность, воздействие горячей воды и наполнители могут повлиять на рабочие характеристики материала.

Carbon-filled grades may conduct electricity. Fillers can also change mating-surface wear. Temperature ratings alone do not establish life under sustained load.

Услуги

Manufacturing Services for Machinery Products

Как продвигается проект

От прототипа до серийного производства

From a functional prototype to small batches and repeat orders, your approved grade, drawing revision and critical features form the part definition.

1

Разработка прототипа и проверка работоспособности приложения

Изучите чертеж, материалы и ключевые характеристики. Проведите испытания обработанных прототипов на соответствие размерам и эксплуатационные характеристики в реальных условиях эксплуатации.

2

Производство небольшими партиями

В качестве ориентиров при производстве используйте утвержденный образец, редакцию чертежа, марку материала и основные размеры.

3

Повторная поставка

Соблюдать утвержденные требования к материалам, чертежам и контролю качества. Проводить повторную проверку изменений, касающихся геометрии, наполнителей или условий эксплуатации.

Get a Quote for Your Machinery Parts

Пришлите чертеж, информацию о материалах и количество.

Add the grade if known, operating conditions and the dimensions that control the fit.
